Simulating laser-driven desorption with MDEF and the TTM
This page focuses on using the model combination tools in NQCDynamics.jl and NQCModels.jl to perform MDEF simulations with separate thermostats for different parts of the system. The page on Molecular Dynamics with Electronic Friction in the main documentation contains more information on MDEF as a method, and is a better starting point if you are trying out the method for the first time.
This is where links to my papers go once they’re done.
Introduction
On this page, we will look at the example of simulating the response of hydrogen adsorbed to a Cu(111) surface to an ultrafast laser pulse using Molecular Dynamics with Electronic Friction and the Two-temperature model.
As detailed before, the nuclear coordinates in MDEF evolve as follows: \[ \mathbf{M}\ddot{\mathbf{R}} = - \nabla_R V(\mathbf{R}) + \mathbf{F}(t) - \Gamma(\mathbf{R}) \dot{\mathbf{R}} \] The first term on the right hand side of the equation corresponds to a conservative force associated with the potential energy surface (PES) as in the adiabatic case. The third term is the friction force and it comes from multiplication between the electronic friction object (\(\Gamma(\mathbf{R})\)) and the velocity. Finally, the second term is a temperature and friction-dependent stochastic force which ensures detailed balance.
The two-temperature model
Temperature profiles for the Two-temperature model can be generated using the LightMatter.jl package. (Will be released soon)
The two-temperature model (TTM) is a system of two coupled differential equations that describe the time evolution of the electronic and lattice temperatures, \(T_{el}\) and \(T_{ph}\). In this work, lateral heat transport across the metal surface is neglected, allowing for a simplified one-dimensional representation of the two-temperature model. The TTM is given by the following set of equations:
Electronic heat capacity \[ C_{el}\frac{\partial}{\partial t}T_{el}=\nabla(\kappa\nabla T_{el})-g(T_{el}-T_{ph})+S(z,t) \]
Phononic heat capacity \[ C_{ph}\frac{\partial}{\partial t}T_{ph}=g(T_{el}-T_{ph}) \]
Laser source term \[ S(z,t)=F\cdot\frac{\exp{\frac{-z}{\xi}}\cdot\exp{\frac{-(t-t_0)^2}{2r^2}}}{\xi\cdot\sqrt{2\pi}\tau}; \tau=\frac{\mathrm{FWHM}}{2\sqrt{2\ln{2}}} \]
The model is parametrised with material-specific parameters obtained from ab-initio calculations or experiments. As an example, the material-specific parameters for bulk crystalline Cu are shown here (Scholz2019):
| Parameter | Explanation | Value |
|---|---|---|
| \(g\) | Electron-phonon coupling constant | \(1\times 10^{-17}~\mathrm{W~m^{-3}~K^{-1}}\) |
| \(\xi\) | Laser penetration depth for \(\lambda=400~\mathrm{nm}\) | \(\frac{1}{\xi}=14.9~\mathrm{nm}\) |
| \(\gamma_{el}\) | Scaling constant for the electronic heat capacity \(C_{el}\). | \(98.0~\mathrm{J~m^{-3}~K^{-2}}\) |
| \(\theta_D\) | Debye temperature of Cu. | \(343~\mathrm{K}\) |
| \(N\) | Atom density of bulk Cu | \(8.5\times 10^{28}\) |
| \(\kappa_{RT}\) | Thermal conductivity at room temperature | \(401.0~\mathrm{W^{-1}~K^{-1}}\) |
| \(\mathrm{FWHM}\) | Full width half maximum of the laser pulse | \(150~\mathrm{fs}\) |
The electronic heat capacity \(C_{el}(T_{el})\) was determined using a linear scaling relation:
\[ C_{el}(T_{el})=\gamma_{el}T_{el} \]
The temperature dependence of the thermal conductivity of Cu was modelled using the following relation:
\[ \kappa(T_{el}, T_{ph})=\kappa_{RT}\frac{T_{el}}{T_{ph}} \]
The phononic heat capacity was calculated using the Debye model with \(N\) and \(\theta_D\) values given above:
\[ C_{ph}(T_{ph})=9nk_B\left(\frac{T_{ph}}{\theta_D}\right)^3\int_0^{\frac{\theta_D}{T_{ph}}}\frac{x^4e^x}{(e^x-1)^2}~dx \]
An example of the TTM progression for a \(80~\mathrm{J~m^{-2}}\) absorbed fluence is shown in the video below.
In our implementation of the TTM, the temperature progressions are saved to CSV files, which need to be interpolated to provide a continuous temperature function to use for our Simulations.
using BSplineKit
using Unitful, UnitfulAtomic
using CSV, DataFrames
"""
This function reads a CSV file for a TTM solution containing:
1. The time in ps
2. Electronic temperature
3. Phononic temperature
Depending on which index is specified, a continuous temperature function for the electronic or phononic temperature is returned.
"""
function T_function_from_file(file::String, index::Int=2)
TTM_file = CSV.read(file, DataFrame)
T_spline = interpolate(TTM_file.Time, TTM_file[:, index], BSplineOrder(4)) # is a cubic spline
T_extrapolation = extrapolate(T_spline, Smooth()) #! Don't use to go earlier than the first point!
T_function(time_ps) = T_extrapolation(ustrip(u"ps", time_ps)) * u"K"
return T_function
end
T_el_function = T_function_from_file("ttm-file.csv", 2)
T_ph_function = T_function_from_file("ttm-file.csv", 3)Models
In the following, we use machine learning interatomic potentials from Stark et al. to predict energies, forces and electronic friction tensors. These will be needed multiple times in the remaining tutorial, so we define functions to load them here.
using MACEModels
using FrictionProviders
"""
Function to load the MACE models used in this tutorial.
"""
function load_mace_model()
atoms, position, cell = read_extxyz("starting_structure.xyz")
# Load PES model
pes_model = MACEModel(
atoms,
cell,
["mace-model.model"];
device="cpu",
default_dtype=Float32,
mobile_atoms::Vector{Int}=18:56, # Keep the top 4 layers mobile, freeze the bottom 2.
)
return pes_model
end
function load_ldfa_eft_ace()
## Create ACE LDFA model
# We need to make a copy of our structure containing only one H atom to evaluate the density
atoms, positions, cell = read_extxyz("starting_structure.xyz")
positions_copy = deepcopy(positions)
H_indices = sort(findall(atoms.types .== :H); rev=true)
indices_to_copy = symdiff(1:lastindex(atoms.types), H_indices[2:end])
single_H_atoms = Atoms(atoms.types[indices_to_copy])
single_H_positions = positions_copy[:, indices_to_copy]
write_extxyz("single_H_structure.xyz", single_H_atoms, single_H_positions, cell)
# Now we load the single H copy and the LDFA model
julip_atoms = ACEpotentials.read_extxyz("single_H_structure.xyz")[1] # Hacky workaround to avoid using python more
eft_model = ACEpotentials.read_dict(ACEpotentials.load_dict("ace_ldfa_H2Cu.json")["IP"])
JuLIP.set_calculator!(julip_atoms, eft_model)
density_model = AceLDFA(AdiabaticModels.JuLIPModel(julip_atoms); density_unit=u"Å^-3")
ldfa_model = LDFAFriction(density_model, atoms; friction_atoms=H_indices)
return ldfa_model
endGenerating initial conditions

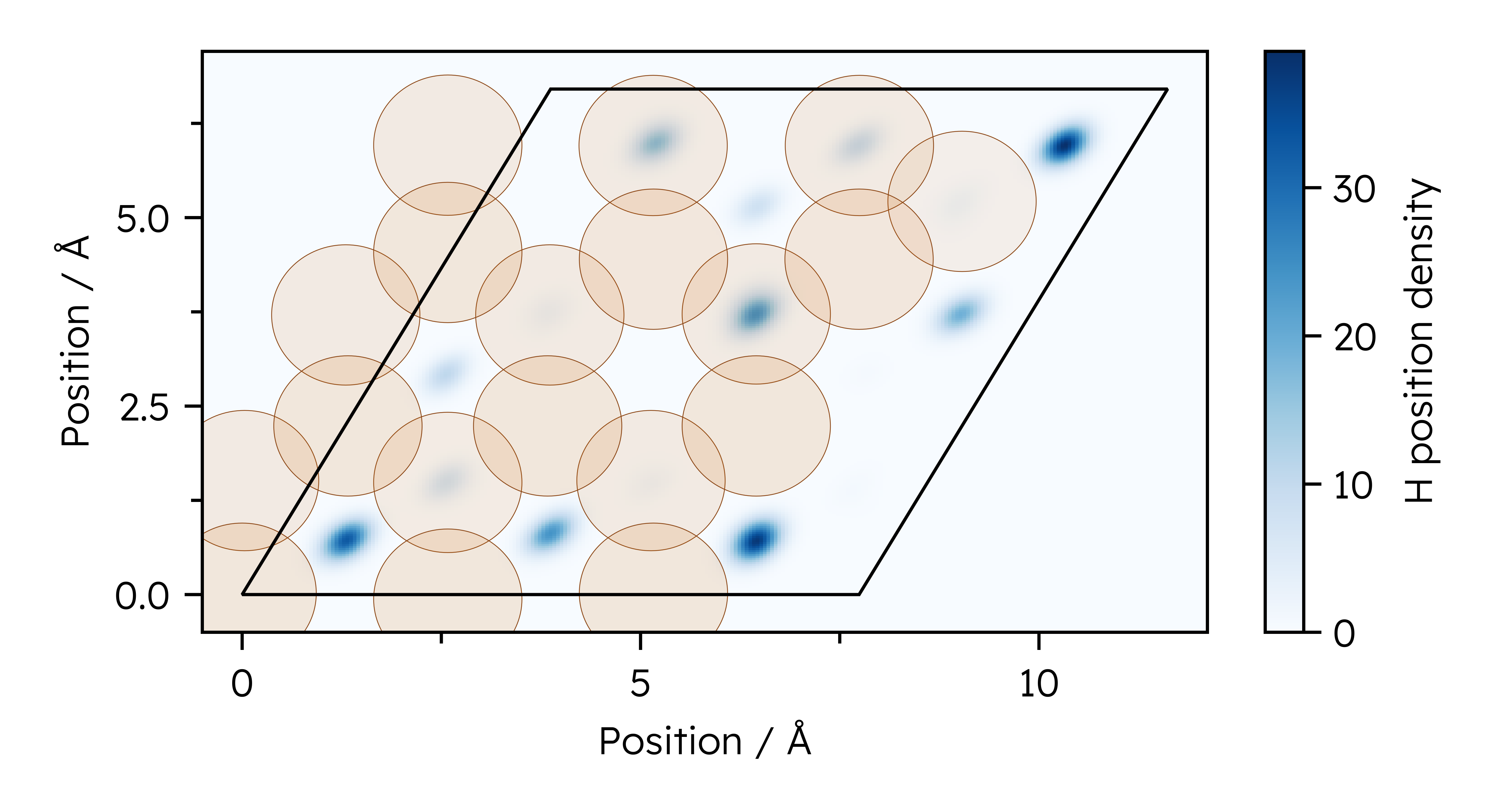

Initial conditions are generated by Metropolis-Hastings Monte Carlo sampling of atomic positions. All Cu(111) structures were generated with a temperature-dependent lattice constant interpolated from NPT ensemble MD trajectories at different temperatures.@starkMachineLearningInteratomic2023a
For a unit cell size of \(3\times 3\times 6\) layers, structures with two and four H atoms were generated with the atoms located in the hollow adsorption sites. For each combination of temperature and coverage, an evenly spaced sample of 100000 structures was taken from a single random walk, discarding the first 1000 steps due to similarity to the starting configuration. Additional parameters for the Monte Carlo sampling are given in the following code block.
function thermal_montecarlo(parameters)
# Import starting structure
atoms, position, cell = read_extxyz("starting_structure.xyz")
# Load PES model
pes_model = load_mace_model()
simulation = Simulation{Classical}(
atoms,
pes_model;
cell = cell,
temperature = 100.0u"K",
)
simulation.atoms.types[1:18] .= :X
step_sizes = Dict(
:H => 3.0, # High step size to have a chance of traversing diffusion barriers.
:Cu => 0.075, # Step size close to kT.
:X => 0.0, # No movement for frozen atoms
)
# Now start MC sampling
mc_chain = InitialConditions.ThermalMonteCarlo.run_advancedmh_sampling(
simulation, # Simulation to run HMC sampling with
positions, # Initial configuration
100000, # Number of MonteCarlo steps to do.
step_sizes; # Step sizes per atom species.
movement_ratio = 2/56, # on average, move two atoms per step
thinning = 15, # Record only every 15 steps to capture fewer similar structures
discard_initial = 10000, # Ignore the first 10000 structures as they are too similar to the starting structure
)
nqcd_distribution = DynamicalDistribution(
VelocityBoltzmann(100.0u"K", simulation),
mc_chain,
sim
)
jldsave("initial_conditions.jld2"; nqcd_distribution = nqcd_distribution) # Save as a JLD2 file to reload later.
end
Setting up a single simulation
Conditional termination of simulations on desorption
Since we want our laser-driven desorption simulations to terminate once a H2 molecule has definitely desorbed, we need to write a termination condition for the simulation.
We consider a H2 molecule as desorbed if it is more than a certain distance away from the top layer of the surface, where the cutoff radius of the MACE MLIP will ensure it can’t return to the surface. The code snippet below shows how this can be achieved with a DiffEq callback which is used later in the tutorial, which also works for an arbitrary amount of H atoms on the surface to allow for desorption detection at different coverages.
using Parameters
@with_kw mutable struct DesorptionTerminator
hydrogen_indices
top_layer_indices::Vector{Int}
min_desorption_distance = 8.0
simulation::NQCDynamics.AbstractSimulation
end
"""
(desorption_terminator::DesorptionTerminator)(u,t,integrator)::Bool
DesorptionTerminator checks whether any combination of `hydrogen_indices` has a centre of mass distance larger than `min_desorption_distance` from `cu_surface_z`.
"""
function (desorption_terminator::DesorptionTerminator)(u, t, integrator)::Bool
# Find possible hydrogen molecules from all unique distance combinations of H atoms.
h_combinations = collect(multiset_combinations(desorption_terminator.hydrogen_indices, 2)) # Unique H neighbour list
surface_z = cu_surface_z(u, desorption_terminator.top_layer_indices)
for molecule in h_combinations
if NQCDynamics.Structure.pbc_center_of_mass(u, molecule..., desorption_terminator.simulation; cutoff=1)[3] - surface_z >= ang_to_au(desorption_terminator.min_desorption_distance) # Check if H2 COM is far enough away from the surface COM
return true
end
end
return false
endCombining Electronic and phononic thermostats

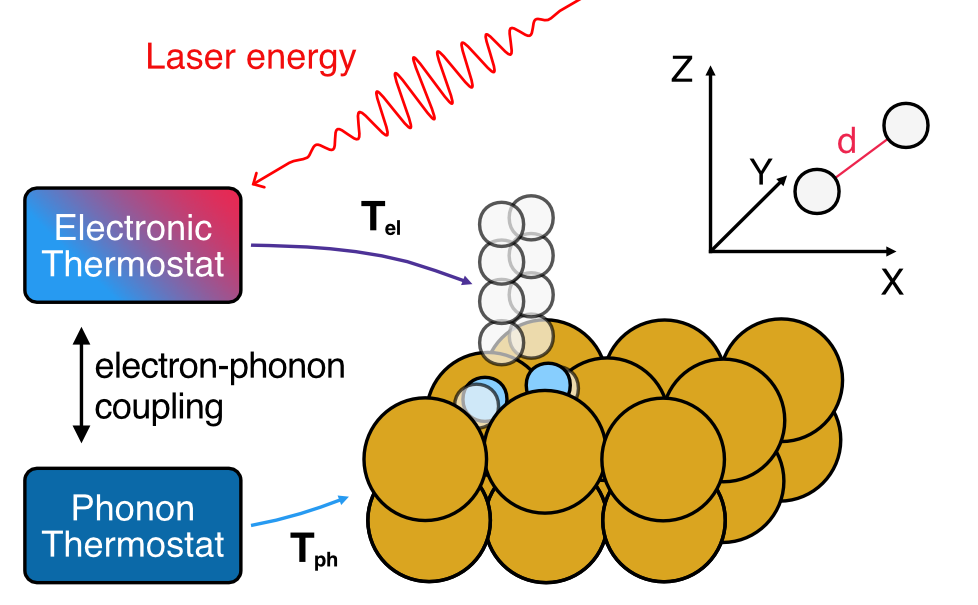

The electron and phonon temperatures are propagated as described above, yielding temperature profiles that are applied to MDEF simulations through the \mathcal{W} term in the Langevin equation. T_{el} is applied directly to the adsorbate H atoms, while \gamma as a function of H positions is determined using one of the MLIPs detailed above. T_{ph} is coupled to the surface Cu atoms using a position-independent coupling constant.
As shown above, T_{ph} can enter our system in different ways. We will use Subsystems to generate a CompositeModel and Simulation for these different strategies.
Electron thermostat only
# PES applies to all atoms
pes_subsystem = Subsystem(pes_model)
# Electronic friction applies to adsorbate atoms 55,56
electronic_friction = Subsystem(load_ldfa_eft_ace(), indices=[55,56])
# Combine models and generate Simulation
combined_model = CompositeModel(pes_subsystem, electronic_friction)
sim_T_el_only = Simulation{MDEF}(
atoms,
combined_model;
temperature = T_el_function,
cell=cell
)Phonon thermostatting top four layers
# PES applies to all atoms
pes_subsystem = Subsystem(pes_model)
# Electronic friction applies to adsorbate atoms 55,56
electronic_friction = Subsystem(load_ldfa_eft_ace(), indices=[55,56])
# Phononic friction applies to surface atoms 18:54
γ_phonon = austrip(uconvert(u"ps^-1", 97694097465737.3 * u"rad/s" / 2 / π / u"rad")) * austrip(101.07u"u") # Friction coefficent based on Debye frequency.
phononic_friction = Subsystem(ConstantFriction(size(positions,1), γ_phonon), indices=18:54)
# Combine models and generate Simulation
combined_model = CompositeModel(
pes_subsystem,
electronic_friction,
phononic_friction
)
# Create TemperatureSetting objects to apply T_el to adsorbates, T_ph to surface
# Manually specified indices
electron_thermostat = TemperatureSetting(T_el_function, indices = [55,56])
# Inherit indices from a Subsystem
phonon_thermostat = TemperatureSetting(T_ph_function, phononic_friction)
sim_T_el_only = Simulation{MDEF}(
atoms,
combined_model;
temperature = [
electron_thermostat,
phonon_thermostat
],
cell=cell
)Running the simulation
thermostats = TemperatureSetting[]
subsystems = Subsystem[Subsystem(pes_model, 1:size(initial_positions,2))]
# Apply phonon thermostat to selected atoms
T_ph_function = T_function_from_file(parameters["2TM-file"], 3)
phonon_indices = 1:54
push!(thermostats, TemperatureSetting(T_ph_function, phonon_indices)) # Apply T_ph profile
push!(subsystems, Subsystem(ConstantFriction(size(initial_positions,1), parameters["γ_phonon"]), phonon_indices)) # Apply phononic friction
T_el_function = T_function_from_file(parameters["2TM-file"], 2)
atom_indices = [55,56]
push!(thermostats, TemperatureSetting(T_el_function, atom_indices)) # Assign T_el profile
push!(subsystems, Subsystem(EFT_model, atom_indices)) # Apply electronic friction
remaining_atoms = symdiff(1:size(initial_positions)[2], [t.indices for t in thermostats]...) # Should be empty
if remaining_atoms != [] # If any atoms aren't assigned to a thermostat, make them classical.
push!(thermostats, TemperatureSetting(0.0, remaining_atoms))
end
complete_model = CompositeModel(subsystems...) # Build model for simulations
@info "Generated PES (+Friction) model with thermostats"
# Setup simulation and termination condition.
# Initialise NCQD Simulation
simulation = Simulation{MDEF}(
atoms,
complete_model;
cell = cell,
temperature = thermostats
)
nqcd_distribution = jldopen("initial_conditions.jld2")["nqcd_distribution"]
desorption_callback = DesorptionTerminator([55,56], collect([46:54]), 6.0, simulation)
terminate_callback = DynamicsUtils.TerminatingCallback(desorption_callback)
outputs = (OutputDesorptionTrajectory, OutputDesorptionAngle, OutputFinalTime, )
saveat = 0.1u"fs"
GC.gc()
traj = run_dynamics(
simulation,
(0.0u"fs", 4.75u"ps"),
nqcd_distribution;
dt = 0.1u"fs",
trajectories = 1,
output = outputs,
callback = CallbackSet(
DynamicsUtils.CellBoundaryCallback(), # This wraps around periodic boundary conditions.
terminate_callback # This stops the simulation on desorption.
),
saveat=saveat_arg,
savetime = false, # Don't save the time at each step, it makes trajectories take up less space.
)
jldsave("trajectory.jld2", results = results, parameters = parameters)
